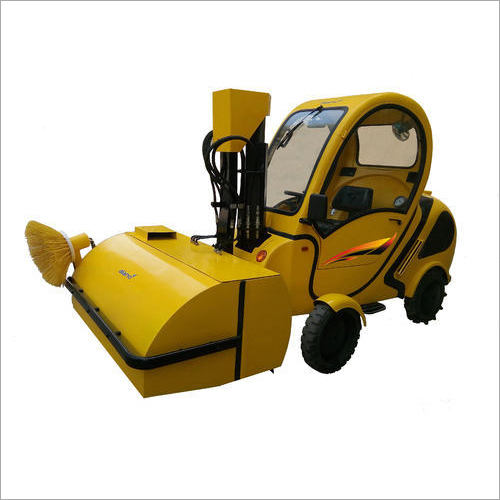

Ride On Street Sweeper

The machine is :
- Proven, indigenized & rugged to take care of Indian road conditions in sweeping
- Diesel engine operated with lowest diesel consumption
- With multi-utility feature & can manage debris up-to 1100 Ltr when combined with trailer
- Does not require water sprinkler and sweeps without dust emission
- Useful for public streets and large areas. Machine with RTO registration
- Can cross over any speed breakers easily due to higher ground clearance
- With multi speed brush, multi machine speed and corresponding multi power vacuum
The deliverables are :
Area Coverage / Hour | ~ 16,000 Sq. Mtr (4 Acres) for ~1.30 Litres of Diesel - under normal conditions |
Total operational cost | 80% less than labour cost on per Sq. Mtr. Basis |
Sweeping process | Vacuum power assisted multi speed brush without any dust emission |
Sweeping quality | Superior in sweeping dust / debris / leaves / pebbles simultaneously |
Economy (ROI) | Less than 6 months (lowest cost of acquisition, operation & maintenance) |
Spares & service | 100% availability within 24 Hours at your door steps |
Machine useful for | Public roads, large open area, floors with concrete, asphalt, bitumen, paver blocks |
Manoeuvrability | Undulations, speed breakers, terrains due to high ground clearance |
Specification :
Sweeping width Max (MM) | 1650 |
Sweeping width Min (MM) | 1250 |
Waste container capacity (Ltr) | 415 |
Trailer capacity gross (Kg) | 700 |
Area coverage / Hr (Sq. Mtr) | 16,000 |
Gradability (Degrees) | 35 |
Working speed range (KMPH) | 5 to 12 |
Machine weight (Kg) | ~1595 |
Dimensions L * B * H (Mtr) | 3.6 * 1.8 * 2 |
Hopper lift height (MM) | 1200 |
Engine make (Diesel) | Mitsubishi |
Engine type | Water cooled |
Engine HP / CC / Cylinders | 19.4 / 952 / 3 |
Ground clearance (MM) | 155 |
Fuel consumption (Ltr/Hr) | 1.3 |
Turning radius (Mtr) | 2.75 |
No. of speeds (Gear/Bush) | 3 / 3 |
Vacuum power (CFM) | ~550 |
Features | Multi Utility |
Forklift capacity (JKg) | 450 |
